ビーム・プロファイリング・カメラ
ビーム・サイズ・マネジメント
パワー・マネージメント (ビーム・サンプラー、フィルター)
波長・マネージメント (コンバーター、フィルター)
カタログダウンロードはこちら
ビーム・プロファイリング・カメラ
 |
 |
 |
 |
 |
| BEAMAGE-4M |

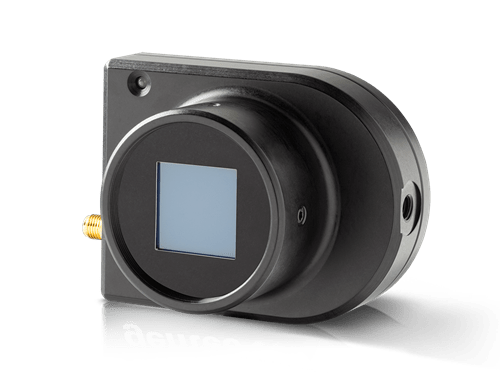

BEAMAGE-4M-FOCUS |

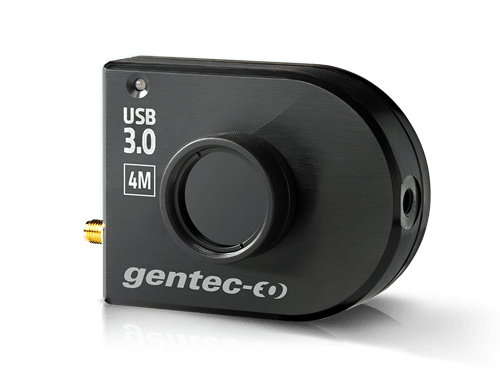

BEAMAGE-4M-IR |
BEAMAGE-3.0 |

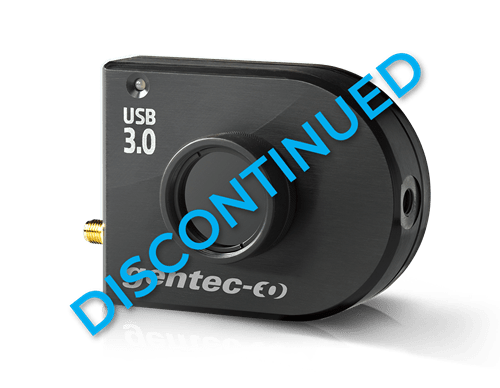

BEAMAGE-3.0-IR |
| Beam profiling camera |
Beam profiling camera with fiber optic taper for large beams |
Beam profiling camera with phosphor coating for IR wavelengths (1495-1595 nm) |
Beam profiling camera |
Beam profiling camera with phosphor coating for IR wavelengths (1495-1595 nm) |
| CMOS sensor: 11.3 x 11.3 mm, 4.2 MPixels, 2048 x 2048, 5.5 μm pixels |
Effective aperture of 20.5 x 20.5 mm (CMOS sensor: 11.3 x 11.3 mm, 4.2 MPixels, 2048 x 2048, 5.5 μm pixels) |
CMOS (phosphor coating) sensor: 11.3 x 11.3 mm, 4.2 MPixels, 2048 x 2048, 5.5 μm pixels |
CMOS sensor: 11.3 x 6.0 mm, 2.2 MPixels, 2048 x 1088, 5.5 μm pixels |
CMOS sensor: 11.3 x 6.0 mm, 2.2 MPixels, 2048 x 1088, 5.5 μm pixels |
| Spectral range: 350-1150nm |
Spectral range: 350-1150nm |
Spectral range: 1495-1595nm |
Spectral range: 350-1150nm |
Spectral range: 1495-1595nm |

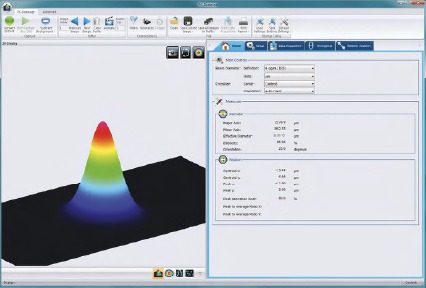

| Free Software |
Free Software |
Free Software |
Free Software |
Free Software |
ビーム・サイズ・マネージメント
 |
 |
| CL-25 |
CL-50 |
| Camera lens for BEAMAGE: 25 mm focal length |

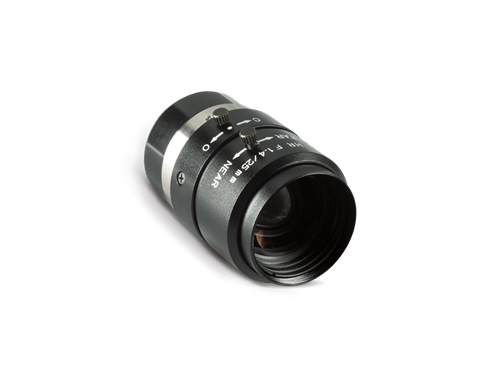

Camera lens for BEAMAGE: 50 mm focal length |
| |
|
| |
|
ビーム・サンプラー
 |
 |
 |
 |

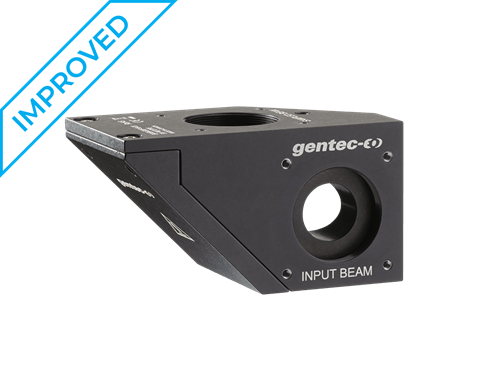

| BA16-60S |

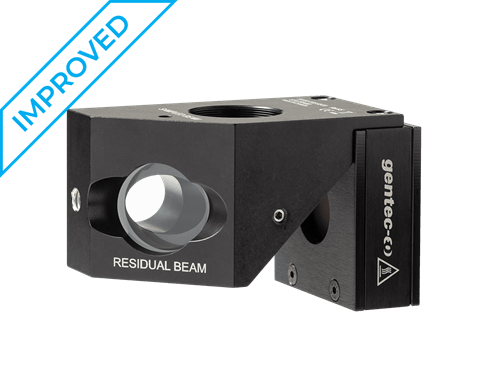

BA16K-150S-H5-D0 |

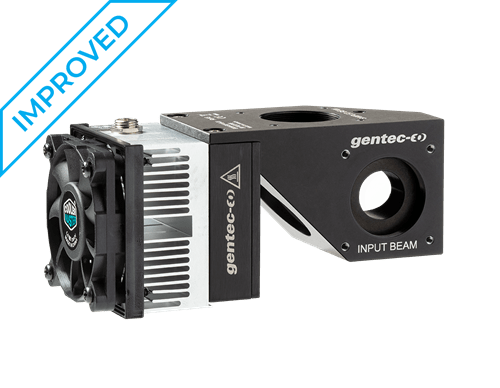

BA16K-500F-H9-D0 |

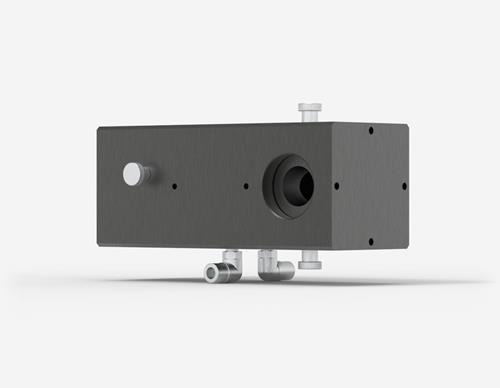

BA32-1KW |
| Optical attenuator, 16 mm Ø, up to 60 W |
Optical attenuator, 16 mm Ø, up to 150 W |
Optical attenuator, 16 mm Ø, up to 500 W |
Optical attenuator, 32 mm Ø, up to 1000 W |
| Spectral range: 200-2100nm |
Spectral range: 200-2100nm |
Spectral range: 200-2100nm |
Spectral range: 200-2100nm |
| |
Integrated power detector: UP19K-15S-H5-D0 |
Integrated power detector: UP19K-110F-H9-D0 |
|
フィルター
 |
 |
 |
 |
 |
| ND0.5 |

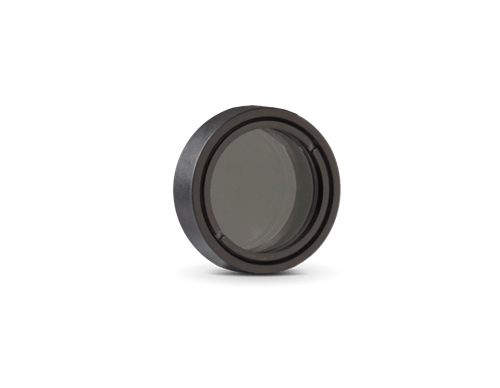

ND1.0 |

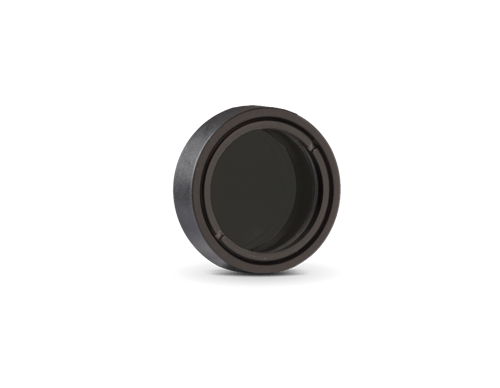

ND2.0 |
ND3.0 |
ND4.0 |
| ND0.5 filter in SM1-threaded stackable holder |
ND1.0 filter in SM1-threaded stackable holder |
ND2.0 filter in SM1-threaded stackable holder |
ND3.0 filter in SM1-threaded stackable holder |
ND4.0 filter in SM1-threaded stackable holder |
| Transmittance: ~32% |
Transmittance: ~10% |
Transmittance: ~1% |
Transmittance: ~0.1% |
Transmittance: ~0.01% |
| Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
 |
 |
 |
| ND5.0 |

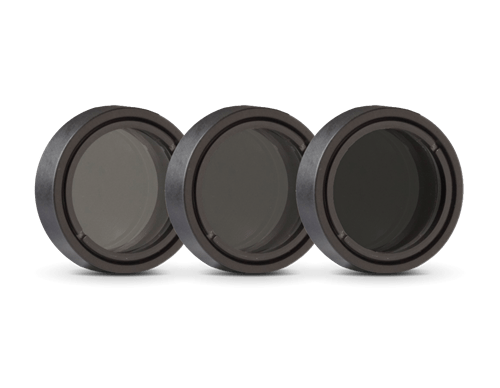

NDSET-3 |
NDSET-6 |
| ND5.0 filter in SM1-threaded stackable holder |
Set of 3 ND filters in SM1 holders: ND1.0, ND2.0, ND3.0 |

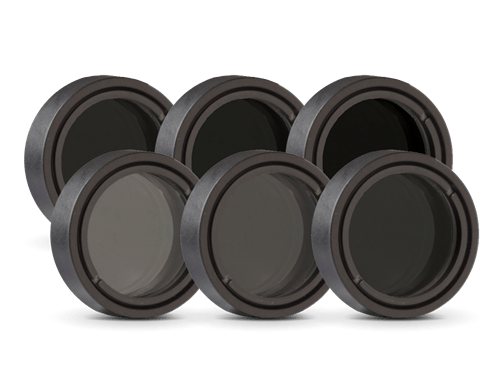

Set of 6 ND filters in SM1 holders: ND0.5, ND1.0, ND2.0, ND3.0, ND4.0, ND5.0 |
| Transmittance: ~0.001% |
Transmittance: ~10,~1,~0.1% |
Transmittance: ~32, ~10, ~1, ~0.1, ~0.01, 0.001% |
| Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
 |
 |
 |
 |
 |
| ND0.5-FOCUS |

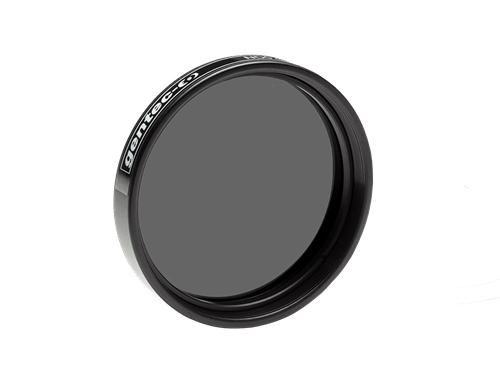

ND1.0-FOCUS |
ND2.0-FOCUS |
ND3.0-FOCUS |
ND4.0-FOCUS |
| ND0.5 filter in SM2-threaded stackable holder |
ND1.0 filter in SM2-threaded stackable holder |
ND2.0 filter in SM2-threaded stackable holder |
ND3.0 filter in SM2-threaded stackable holder |
ND4.0 filter in SM2-threaded stackable holder |
| Transmittance: ~32% |
Transmittance: ~10% |
Transmittance: ~1% |
Transmittance: ~0.1% |
Transmittance: ~0.01% |
| Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
 |
 |
 |

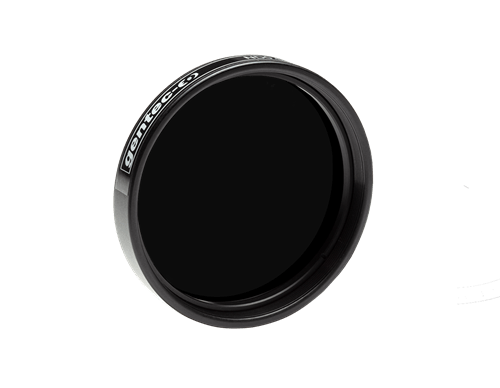

| ND5.0-FOCUS |

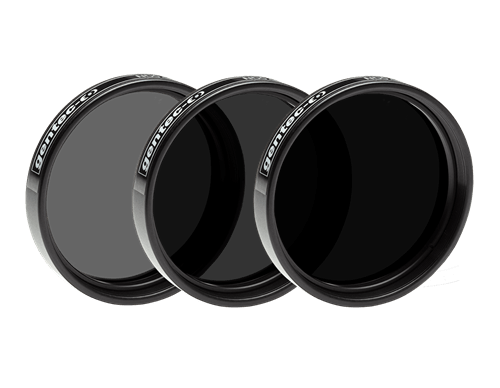

NDSET-FOCUS-3 |

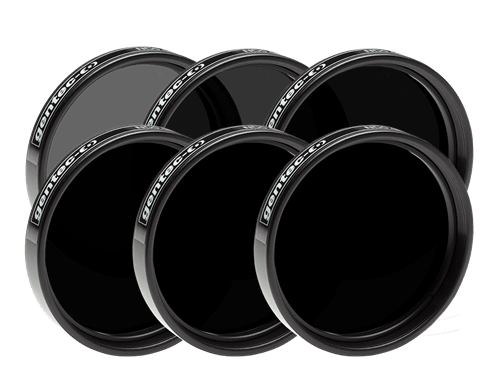

NDSET-FOCUS-6 |
| ND5.0 filter in SM2-threaded stackable holder |
Set of 3 ND filters in SM2 holders: ND1.0-FOCUS, ND2.0-FOCUS, ND3.0-FOCUS |
Set of 6 ND filters in SM2 holders: ND0.5-FOCUS, ND1.0-FOCUS, ND2.0-FOCUS, ND3.0-FOCUS, ND4.0-FOCUS, ND5.0-FOCUS |
| Transmittance: ~0.001% |
Transmittance: ~10,~1,~0.1% |
Transmittance: ~32, ~10, ~1, ~0.1, ~0.01, 0.001% |
| Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
Spectral range: 400-1595nm |
コンバーター
 |
 |

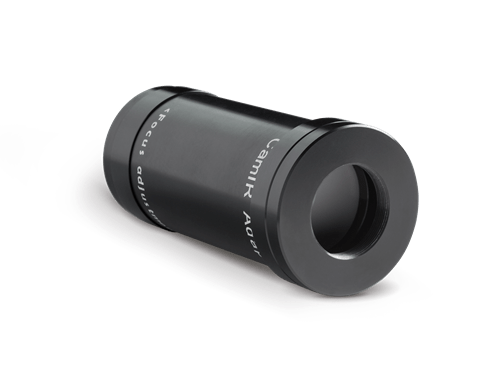

| IR ADAPTOR |

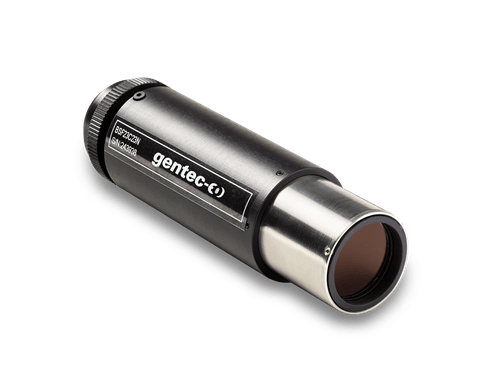

UV CONVERTOR |
| IR adaptor to expand the BEAMAGE range to near-IR telecom wavelengths |
UV converter for BEAMAGE |
| The IR adaptor converts wavelengths between 1495 nm and 1595 nm to shorter wavelengths between 950 nm and 1075 nm |
Various crystal types available. Please contact Gentec-EO for help choosing a model |
| Spectral range: 1495~1595nm |
Spectral range: 10~535nm |
フィルター
 |
 |
| UG11-UV |

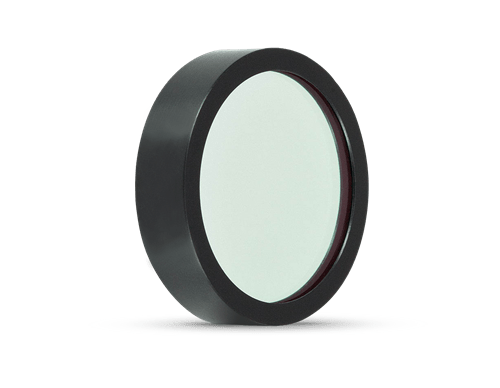

B3-IR-FILTER |
| UV transmitting filter for BEAMAGE camera |
IR filter for BEAMAGE camera |
| Spectral range: 250-370nm |
Spectral range: 1250-1350nm |
| |
|
